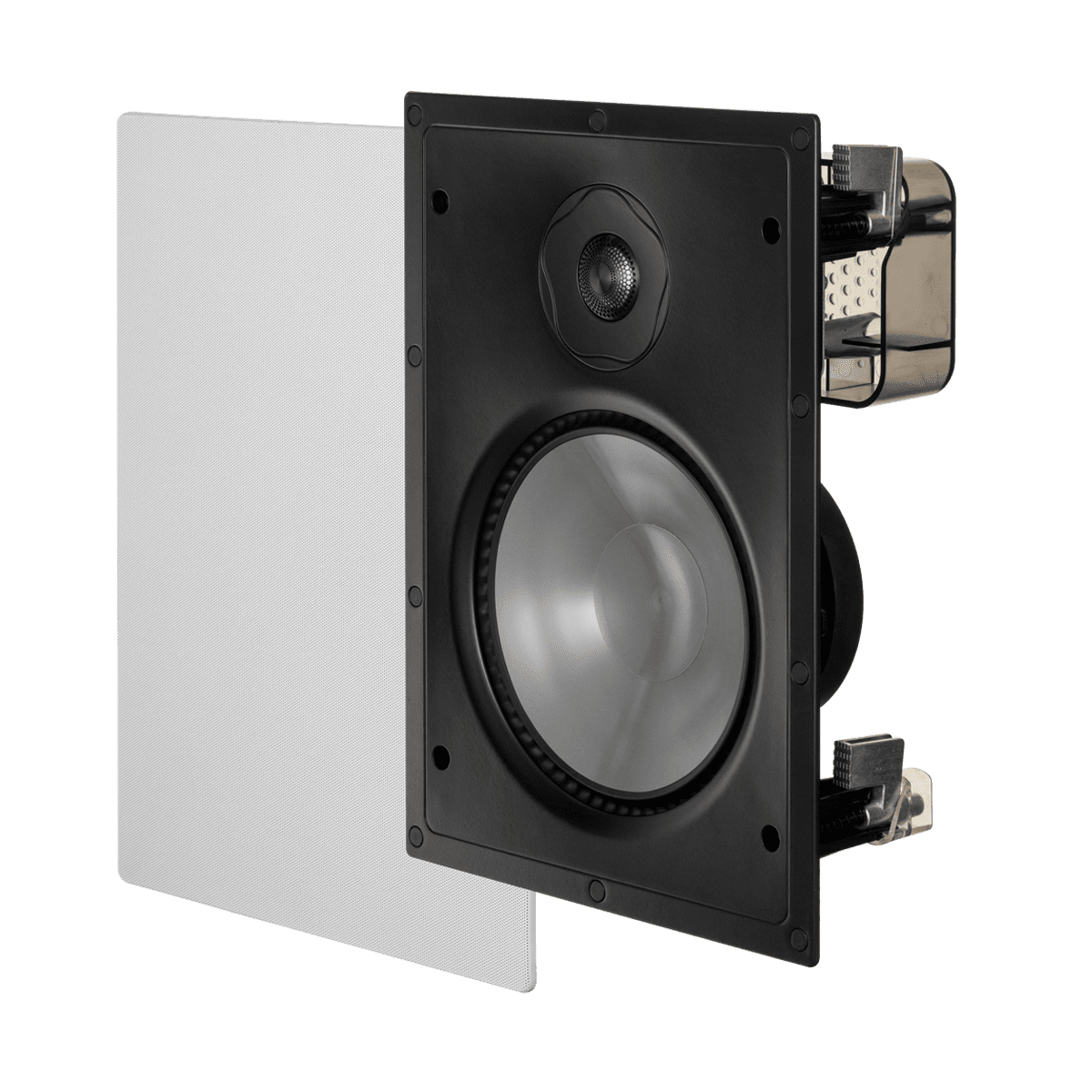

CI Pro P80-IW

$499.99 each

discontinued

Add to compare

8 In-Wall, 2-driver, 2-way in-wall, SHOCK-MOUNT Isolation Mounting System, die-cast aluminum baffle

SPECIFICATIONS

DESIGN	2-driver, 2-way in-wall, SHOCK-MOUNT™ Isolation Mounting System, die-cast aluminum baffle
CROSSOVER	2nd-order electro-acoustic at 2.5 kHz
HIGH FREQUENCY DRIVER	1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
FREQUENCY RESPONSE ^ON-AXIS	±3 dB from 55 Hz - 22 kHz
FREQUENCY RESPONSE ^{30° OFF-AXIS}	±3 dB from 55 Hz - 22 kHz
MID/BASS FREQUENCY DRIVER	8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
SENSITIVITY ROOM / ANECHOIC	91.5 dB / 87.5 dB
LOW FREQUENCY EXTENSION	30 Hz
SUITABLE AMPLIFIER POWER RANGE	15-150 W
MAXIMUM INPUT POWER	100 W
IMPEDANCE	Compatible with 8 ohms
OVERALL DIMENSIONS	12.625" (32.1cm) Height 9.25" (23.5cm) Width 4" (10.2cm) Depth
CUT-OUT DIMENSIONS	11.56" (29.4cm) Height 8.06" (20.5cm) Width
MINIMUM MOUNTING DEPTH ^{(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)}	3.375" (8.6cm)
WEIGHT	8.6 lbs. (3.9 kg)
FINISHES	White, paintable grille, black/grey speaker

Specifications are subject to change without notice.
