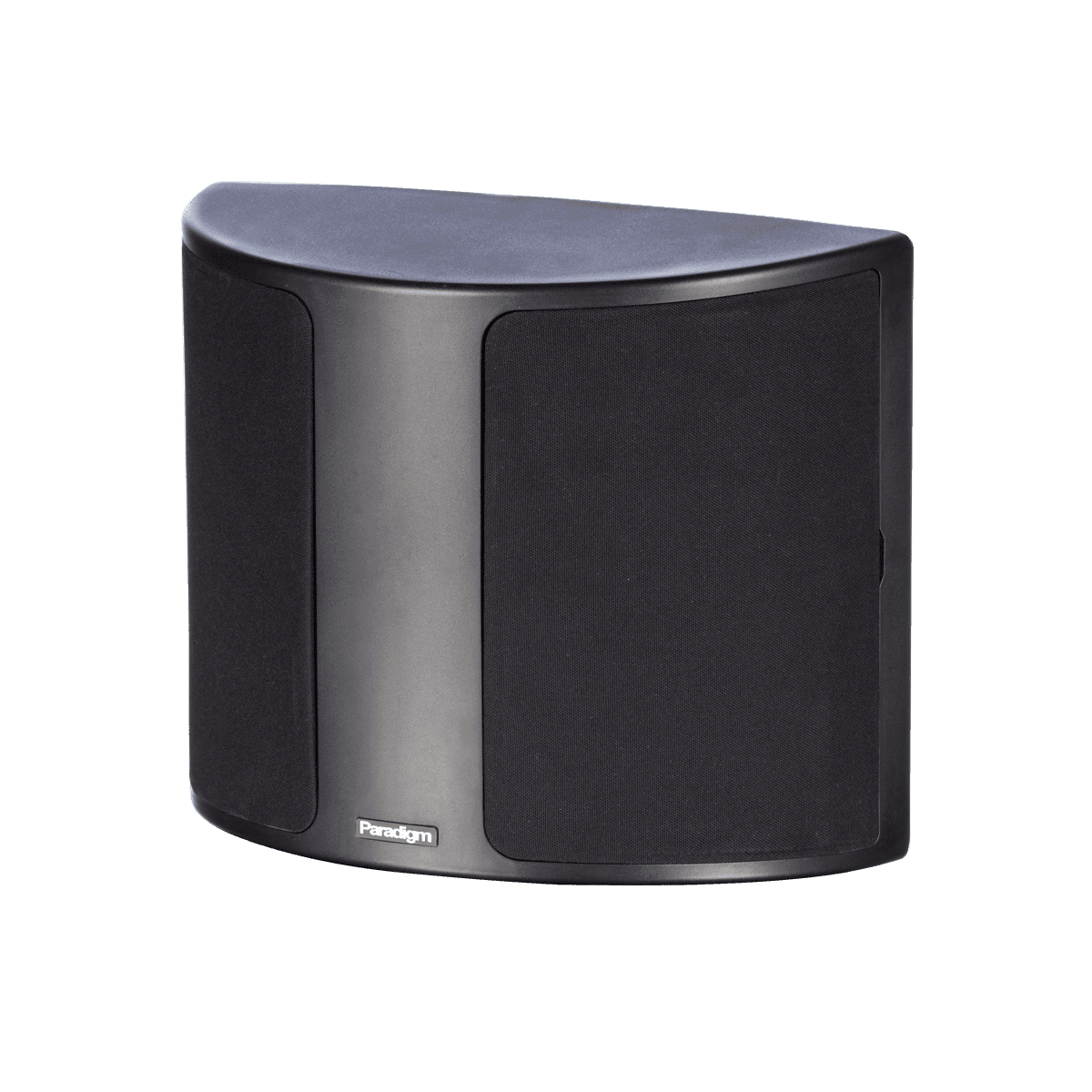

Monitor Surround 3 v7
4-driver, 2-way bi-directional surround/rear
SPECIFICATIONS
| DESIGN | 4-driver, 2-way bi-directional surround/rear |
| FREQUENCY RESPONSE ON-AXIS | ±2dB from 90 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | Two 25-mm (1 in) S-PAL™ dome tweeters, ferro-fluid cooled and damped |
| MID/BASS FREQUENCY DRIVER | Two 140-mm (5-1/2 in) S-PAL™ cones, 25-mm (1 in) voice-coils, oversize ceramic / ferrite magnets, GRIP™ chassis |
| LOW FREQUENCY EXTENSION | 53 Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC | 90 dB / 87 dB |
| IMPEDANCE | Compatible with 8 ohms |
| FINISHES | Black |
| WEIGHT | 13.95 lbs. (6.32 kg) |
| DIMENSIONS HXWXD | 10.625" × 13" × 5.625" (27.0cm × 33.0cm × 14.3cm) |
| CROSSOVER | 2nd-order electro-acoustic at 2.3 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | (bi-directional soundfield) |
| SUITABLE AMPLIFIER POWER RANGE | 15 - 175 watts |
| MAXIMUM INPUT POWER | 120 watts |
Specifications are subject to change without notice.
