RVC-12SQ

Vibration-canceling in-wall, two high-excursion drivers, die-cast chassis with MDF mounting frame

Big Bass With No Floor Space!

How do you get Reference quality performance (i.e. phenomenal output, breathtaking clarity, superb extension and speed!) out of an in-wall subwoofer without it tearing your wall to shreds with the first big explosion or tympani crescendo?

Serious high-output subwoofers produce real energy. However, the majority of in-wall subwoofers out there don’t (read: CAN'T!) produce serious bass, so vibrational energy isn’t an issue. Not so with the RVC-12SQ in-wall subwoofer. It’s like a dog off the leash. Free from the constraints of conventional in-wall design, boasting dual state-of-the-art 14˝ drivers in a cutting-edge Vibration Canceling Design Architecture, it’s free to dig deeper for new levels of articulate, soul-stirring bass while chasing new heights in performance.

Impedance Matching Switch. Allows use with X-300 or X-850 amplifiers.

We're Stirring Up Good Vibrations

Bass frequencies are notorious for stirring up wall vibrations – not a good thing! Conventional in-wall subs excite these vibrations through a reactive force opposite to that created by the movement of the voice coil. We turned things around. In the RVC-12SQ the two woofers fire in phase, in opposite directions. This results in a physical cancelation of wall vibrations.

Paired with a matching Paradigm X amp and enhanced by the critically acclaimed Paradigm Perfect Bass Kit™ digital room correction system (sold separately), RVC-12SQ delivers bass that will rock your world, not your walls.

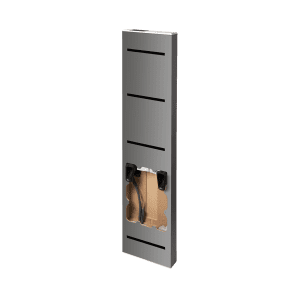

For new construction an optional BX-12SQ backbox is designed to maximize output by adding precision low-noise ports. In truth, with the use of this backbox, performance is even a notch better!

RVC High-Excursion Bass Driver

Dual State-of-the-Art Side-Mounted 4˝ (102 mm) x 14˝ (356 mm) Mineral-Filled Co-Polymer Polypropylene Cones. Highly damped and tremendously rigid cone provides tight, well-defined low-frequency response with a weight and authority that does justice to the most challenging music and movie material.

Pleated LCS™ Linear Corrugated Surround features Ultra-Long-Travel Suspension. The over-molded design produces truly exceptional peak-to-peak cone movement producing higher output and lower distortion—every bass note sounds distinct. Cone ribbing increases stiffness, reducing resonances to inaudible levels.

State-of-the-Art Motor Structure / FEA-Optimized 1/2-lb (0.19 kg) Super-Neodymium Magnets. 1˝ (25 mm) 6-layer voice-coil, anodized high-temperature aluminum former and dual Nomex® cloth spiders. The huge ceramic/ferrite magnets generate a truly enormous magnetic forcefield in the gap … always a plus in a subwoofer!

One-Piece High-Pressure Ultra-Rigid™ Die-Cast Chassis and Immovable MDF Medium Density Fiberboard Mounting System

State-of-the-art system! A superbly rigid structure that easily withstands every decibel of the enormous power generated by the two state-of-the-art 4˝ x 14˝ bass drivers! NOTE: A backbox is optional with this subwoofer.

Impedance Switch

The Impedance Matching Switch enables the use of a X-300 or X-850 amplifier.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

SPECIFICATIONS
DESIGN Vibration-canceling in-wall, two high-excursion drivers, die-cast chassis with MDF mounting frame
LOW FREQUENCY EXTENSION 17 Hz (DIN)
FINISHES White, paintable
WEIGHT 14.3 lbs. (6.5 kg)
LOW FREQUENCY DRIVER Two 356-mm (14 in) x 102-mm (4 in) mineral-filled co-polymer polypropylene cones
OVERALL DIMENSIONS 17.75" (45.1cm) Height 13.75" (34.9cm) Width " (0.0cm) Depth
CUT-OUT DIMENSIONS 16.4375" (41.8cm) Height 12.625" (32.1cm) Width
MINIMUM MOUNTING DEPTH 3.5" (8.9cm)
MINIMUM INTERNAL VOLUME REQUIRED 1.0 cu ft (28.4 L)
REQUIRED BACKBOX (SOLD SEPARATELY) bx-12sq (optional)

Specifications are subject to change without notice.

DOWNLOADS
RVC-12SQ / BX-12SQ DIMENSION SHEET 61.29k
RVC-12SQ DIMENSIONAL DRAWING 153.81k
RVC-12SQ / X-300 / X-850 DATASHEET 555.97k
