PRODUCT COMPARISON

6Products in Comparison


Design
Crossover
High Frequency Driver
Frequency Response ^On-Axis
Frequency Response ^{30° Off-Axis}
Mid/Bass Frequency Driver
Sensitivity Room / Anechoic
Low Frequency Extension
Suitable Amplifier Power Range
Maximum Input Power
Impedance
Overall Dimensions
Cut-Out Dimensions
Minimum Mounting Depth ^{(Depth required is the distance between 1/2" drywall, or similar material.)}
Weight
Finishes

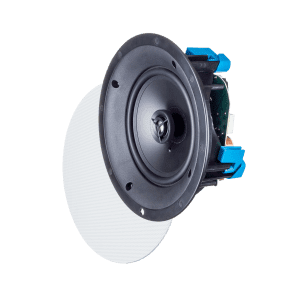

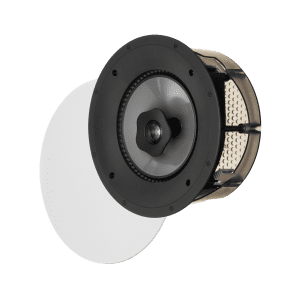

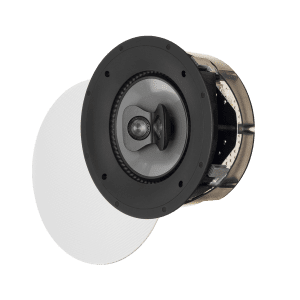

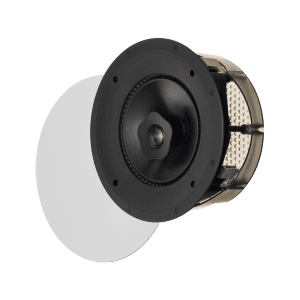

LOCK\| REMOVE CI Elite E80-R 8" In-Ceiling, 2-driver, 2-way in-ceiling, SHOCK-MOUNT Isolation Mounting System, nylon... Be the first to review this product US$599.99 Discontinued	LOCK\| REMOVE CI Home H65-A 6-1/2 Round In-Ceiling with 30°-Angled Guided SoundField™, 2-driver 2-way, ABS chass... Be the first to review this product US$299.99 Discontinued	LOCK\| REMOVE CI Home H65-R 6-1/2 Round In-Ceiling, 2-driver 2-way, ABS chassis/mounting clamps Be the first to review this product US$199.99 Discontinued	LOCK\| REMOVE CI Pro P80-R 8 Round In-Ceiling, 2-driver, 2-way in-ceiling, SHOCK-MOUNT Isolation Mounting System, nyl... Be the first to review this product US$399.99 Discontinued	LOCK\| REMOVE CI Pro P80-RX 8 Round Marine Application, 2-driver, 2-way in-ceiling, SHOCK-MOUNT Isolation Mounting ... Be the first to review this product US$499.99 Discontinued	LOCK\| REMOVE CI Pro P80-SM 8 Round In-Ceiling, 3-driver, 2-way in-ceiling, switchable stereo/mono, SHOCK-MOUNT Isolat... Be the first to review this product US$499.99 Discontinued
2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle	2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield™ system, ABS chassis & mounting clamps	2-driver, 2-way in-ceiling, ABS chassis & mounting clamps	2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle	2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle	3-driver, 2-way in-ceiling, switchable stereo/mono, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
3rd-order electro-acoustic at 2.0 kHz	2nd-order electro-acoustic at 2.5 kHz	2nd-order electro-acoustic at 3.0 kHz	2nd-order electro-acoustic at 2.5 kHz	2nd-order electro-acoustic at 2.5 kHz	2nd-order electro-acoustic at 2.0 kHz
1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens	1" (2.5cm) PTD™ dome	3/4" (1.9cm) PTD™ dome	1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens	1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens	Two 1" (2.5cm) X-PAL™ domes, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
±3 dB from 60 Hz - 22 kHz	±2 dB from 70 Hz - 20 kHz	±2 dB from 70 Hz - 20 kHz	±3 dB from 64 Hz - 22 kHz	±3 dB from 64 Hz - 22 kHz	±3 dB from 64 Hz - 22 kHz
±3 dB from 60 Hz - 18 kHz	±2 dB from 70 Hz - 15 kHz	±2 dB from 70 Hz - 18 kHz	±3 dB from 64 Hz - 18 kHz	±3 dB from 64 Hz - 18 kHz	±3 dB from 64 Hz - 18 kHz
8" (20.3cm) X-PAL™ driver, overmolded Active Ridge Technology (ART™) surround, 1.5" high-temp voice coil, die-cast aluminum chassis	6.5" (16.5cm) mineral-filled polypropylene cone	6.5" (16.5cm) mineral-filled polypropylene cone	8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis	8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis	8" (20.3cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
93 dB / 89 dB	89 dB / 85 dB	89 dB / 85 dB	92 dB / 88 dB	92 dB / 88 dB	92.5 dB / 88.5 dB
37 Hz	55 Hz	55 Hz	39 Hz	39 Hz	40 Hz
15-160 W	15-80 W	15-80 W	15-110 W	15-110 W	15 - 110 W Mono; 15 - 55 W / channel Stereo Input
100 W	50 W	50 W	80 W	80 W	100 W Mono / 50 W Stereo
Compatible with 8 ohms	Compatible with 8 ohms	Compatible with 8 ohms	Compatible with 8 ohms	Compatible with 8 ohms	Compatible with 8 ohms
10.25" (26.0cm) Diameter 4.5" (11.4cm) Depth	11.375" (28.9cm) Diameter 5.25" (13.3cm) Depth	8.75" (22.2cm) Diameter 3.625" (9.2cm) Depth	10.25" (26.0cm) Diameter 4.5" (11.4cm) Depth	10.25" (26.0cm) Diameter 4.5" (11.4cm) Depth	10.25" (26.0cm) Diameter 4.5" (11.4cm) Depth
9.1875" (23.3cm) Diameter	10.375" (26.4cm) Diameter	7.75" (19.7cm) Diameter	9.1875" (23.3cm) Diameter	9.1875" (23.3cm) Diameter	9.1875" (23.3cm) Diameter
3.875" (9.8cm)	4" (10.2cm)	3" (7.6cm)	3.875" (9.8cm)	3.875" (9.8cm)	3.875" (9.8cm)
6.4 lbs. (2.9 kg)	4 lbs. (1.8 kg)	3.5 lbs. (1.6 kg)	6.4 lbs. (2.9 kg)	6.4 lbs. (2.9 kg)	7.0 lbs. (3.2 kg)
White, paintable grille, black speaker	White, paintable grille	White, paintable grille	White, paintable grille, black/grey speaker	White, paintable grille, black/grey speaker	White, paintable grille, black/grey speaker
