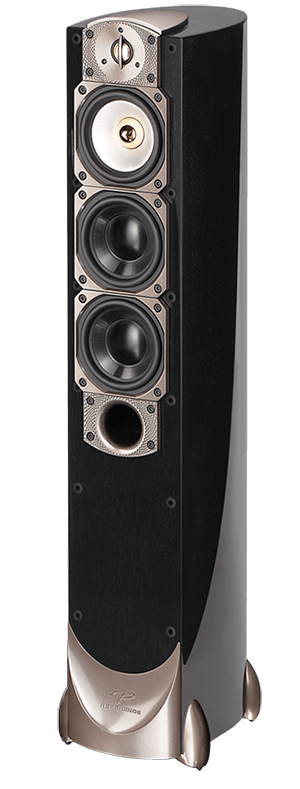

Studio 60 v5

Reference Collection » Studio Series » Floorstanding / Tower

Price when discontinued:
Starting at
$1,249 each USD

Studio 60 v5 Specifications


Design

4-driver, 2-1/2-way floorstanding

Crossover

2nd-order electro-acoustic at 2.0 kHz; 2nd-order electro-acoustic at 500 Hz (lower bass drivers)

Frequency Response   On-Axis

±2dB from 45 Hz - 22 kHz

Frequency Response   30° Off-Axis

±2dB from 45 Hz - 20 kHz

High Frequency Driver

25-mm (1 in) G-PAL™ dome, ferro-fluid damped / cooled, die-cast heatsink chassis, IMS/SHOCK-MOUNT™

Mid/Bass Frequency Driver

140-mm (5-1/2 in) S-PAL™ cone, 38-mm (1-1/2 in) voice-coil, AVS™ die-cast heatsink chassis, IMS/SHOCK-MOUNT™

Low Frequency Driver

Two 140-mm (5-1/2 in) mineral-filled polypropylene cones, 38-mm (1-1/2 in) voice-coils, AVS™ die-cast heatsink chassis, IMS/SHOCK-MOUNT™

Low Frequency Extension

29 Hz (DIN)

Sensitivity   Room / Anechoic

92 dB / 89 dB

Impedance

Compatible with 8 ohms

Suitable Amplifier Power Range

15 - 220 watts

Maximum Input Power

170 watts

Finishes

Cherry, Rosenut, Black

Weight

50 lbs. (22.7 kg)

Dimensions   HxWxD

40.125" × 7.875" × 11.875"
(101.9cm × 20.0cm × 30.2cm)

 Specifications are subject to change without notice.
