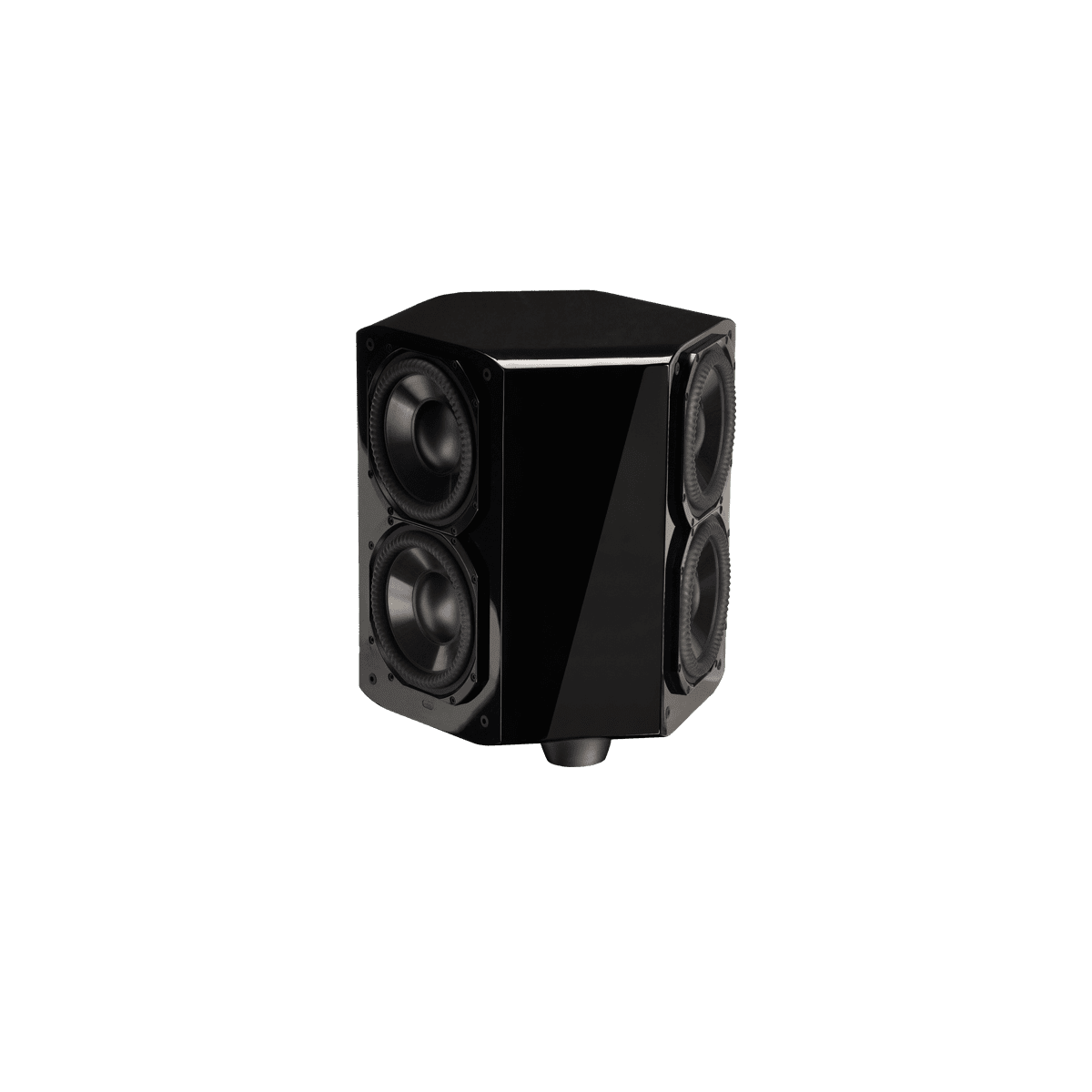

SUB 1

$5,460.00 each
discontinued

Hexagonal cabinet with multiple high-excursion drivers radially aligned in a Vibration-Canceling Design Architecture, patented built-in Ultra-Class-D™ power amplifier, sealed enclosure, PBK interface, removable grille

World-class performance! Our Signature products deliver best-in-class performance for music and home theater with bold aesthetic.

Model Lineup

Crafted in Canada

Designed, engineered, and fully Crafted in Canada, by people who love great audio (just like you). From the precise workmanship of the non-resonant cabinets to their beautiful premium-grade finishes, Prestige is truly hand-built for performance.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

MODEL COMPARISON
MODEL COMPARISON
Product Price
Starting At
Design Frequency Response On-Axis Low Frequency Extension Sensitivity Room / Anechoic
SUB 2
$10,500.00
Hexagonal cabinet with multiple high-excursion drivers radially aligned in a Vibration-Canceling Design Architecture, patented built-in Ultra-Class-D™ power amplifier with Power Factor Correction, sealed enclosure, PBK interface. NOTE: Due to the incredibly high power and tremendous output the SUB 2’s grilles are non-removable. 7 Hz (DIN) 100 mV mono /
SIG-1.5R-30 v.3
$1,000.00
Guided Soundfield™ system, 2-driver, 2-way in-ceiling, drivers mounted at 30° relative to mounting surface, Ultra-Rigid™ die-cast chassis with GRIP™ mounting bracket ±2dB from 58 Hz - 45 kHz 37 Hz (DIN) 92 dB / 88 dB
SIG-1.5R v.3
$825.00
2-driver, 2-way in-ceiling / in-wall, GRIP™ chassis / mounting bracket ±2 dB from 58 Hz - 45 kHz 37 Hz (DIN) 92 dB / 88 dB

Specifications are subject to change without notice.

SPECIFICATIONS
DESIGN Hexagonal cabinet with multiple high-excursion drivers radially aligned in a Vibration-Canceling Design Architecture, patented built-in Ultra-Class-D™ power amplifier, sealed enclosure, PBK interface, removable grille
AMPLIFIER 3,400 watts Dynamic Peak / 1,700 watts RMS
AMPLIFIER FEATURES Auto-On / Off, Trigger On / Off, soft clipping, electrical shorting protection, thermal protection
ROOM CORRECTION Paradigm Perfect Bass Kit™ (Included)
LOW FREQUENCY EXTENSION 12 Hz (DIN)
SENSITIVITY ROOM / ANECHOIC 100 mV mono /
IMPEDANCE RCA: 10k ohms; XLR: 20k ohms
FINISHES Cherry, Piano Black, Black Ash
WEIGHT 109 lbs. (49.4 kg)
LOW FREQUENCY DRIVER Six 203-mm (8 in) mineral-filled co-polymer polypropylene cones, overmolded FEA-optimized NLC™ surrounds, 38-mm (1-1/2 in) four-layer long-excursion voice coils, high-temperature composite Nomex® formers, advanced spiders, 9.2-lb (4.16 kg) hard ferrite magnet / motor structure, AVS™ die-cast heatsink chassis
LOW PASS FILTER FREQUENCY Variable 35 Hz - 150 Hz; Bypass Option
SUB / SAT PHASE ALIGNMENT Variable 0° - 180°
INPUTS RCA (S/E) Left and Right or Sub-Out / LFE or Balanced XLR. From Sub-Out / LFE-Out of preamp, processor or other line-level source
DIMENSIONS HXWXD (INCLUDES GRILLES AND FEET) 20.25" × 19.875" × 17.875" (51.4cm × 50.5cm × 45.4cm)
SPIKE/INSERT THREAD (THREAD SIZE/THREADS PER INCH) 0.3125"-18

Specifications are subject to change without notice.

DOWNLOADS
SIGNATURE SUB 1 / SUB 2 MANUAL 10.92M
SIGNATURE SUB 1 / SUB 2 DATASHEET 701.89k
SUBWOOFER FIRMWARE V1.36 9.99M
