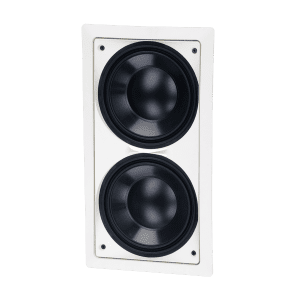

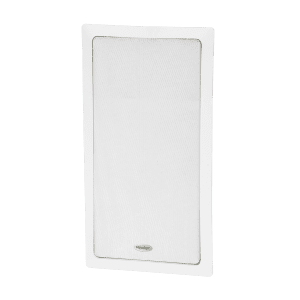

PCS-82SQ

Dual high-excursion drivers, in-wall, GRIP™ chassis / mounting bracket

Enjoy high-performance, high-impact bass from an in-wall/in-ceiling subwoofer with PCS Series. Part of our affordable audiophile custom collection subs feature carbon-fiber reinforced polypropylene cones. The die-cast or glass-reinforced polymer chassis and full-perimeter brackets are the most rigid designs on the market. Amplifier power is supplied by an X-Series amplifier, sold separately.

Model Lineup

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

MODEL COMPARISON
MODEL COMPARISON
Product Price
Starting At
Design Mid/Bass Frequency Driver Low Frequency Driver Low Frequency Extension
PCS-82SQ
$449.00
Dual high-excursion driver, in-wall, GRIP™ chassis / mounting bracket Two 210-mm (8 in) CFP™ carbon-fiber-reinforced polypropylene cones, 38-mm (1-1/2 in) voice coils, over-molded TPR™ surrounds, 38-mm (1-1/2 in) 4-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures 19 Hz (DIN)

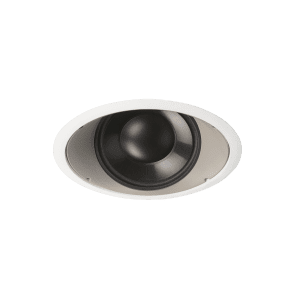

PCS-80R
$249.00
Single high-excursion driver, in-ceiling, combination die-cast and GRIP™ chassis / mounting bracket 210-mm (8 in) CFP™ cone, 38-mm (1-1/2 in) voice-coil, over-molded TPR™ surround, high-temperature polyamide former, ceramic / ferrite magnet structure 19 Hz (DIN)

Specifications are subject to change without notice.

SPECIFICATIONS
DESIGN Dual high-excursion driver, in-wall, GRIP™ chassis / mounting bracket
MID/BASS FREQUENCY DRIVER Two 210-mm (8 in) CFP™ carbon-fiber-reinforced polypropylene cones, 38-mm (1-1/2 in) voice coils, over-molded TPR™ surrounds, 38-mm (1-1/2 in) 4-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
LOW FREQUENCY EXTENSION 19 Hz (DIN)
FINISHES White, paintable
WEIGHT 8.8 lbs. (4 kg)
OVERALL DIMENSIONS 9.25" (23.5cm) Height 16.75" (42.5cm) Width " (0.0cm) Depth
CUT-OUT DIMENSIONS 8.125" (20.6cm) Height 15.625" (39.7cm) Width
MINIMUM MOUNTING DEPTH 3.9375" (10.0cm)
MINIMUM INTERNAL VOLUME REQUIRED 0.99 cu ft (28 L)

Specifications are subject to change without notice.

DOWNLOADS
IMPORTANT INFORMATION ABOUT PCS-82SQ 791.31k
PCS-82SQ DATASHEET 626.04k
PCS-82SQ DIMENSIONAL DRAWING 135.25k
