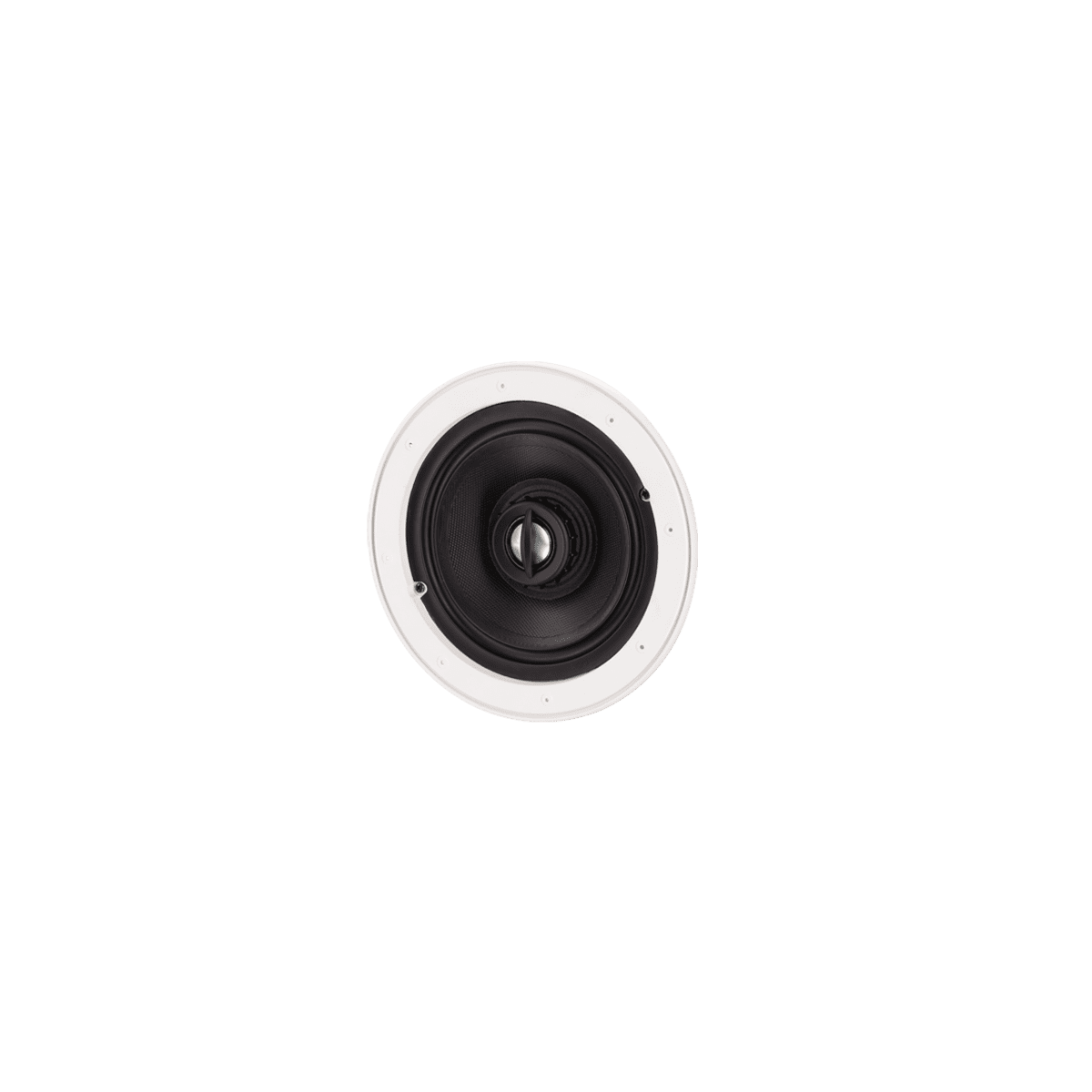

AMS-100RX

2-driver, 2-way in-ceiling / in-wall, stainless steel grilles, Xtreme Moisture Application™ version, GRIP™ chassis / mounting bracket


SPECIFICATIONS
DESIGN 2-driver, 2-way in-ceiling / in-wall, stainless steel grilles, Xtreme Moisture Application™ version, GRIP™ chassis / mounting bracket
FREQUENCY RESPONSE ON-AXIS ±2 dB from 75 Hz - 22 kHz
HIGH FREQUENCY DRIVER 25-mm (1 in) S-PAL™ dome, die-cast heatsink
MID/BASS FREQUENCY DRIVER 165-mm (6-1/2 in) mineral-filled polypropylene cone
LOW FREQUENCY EXTENSION 55 Hz (DIN)
SENSITIVITY ROOM / ANECHOIC 89 dB / 85 dB
IMPEDANCE Compatible with 8 ohms
FINISHES White, paintable
WEIGHT 3.3 lbs. (1.5 kg)
CROSSOVER 2nd-order electro-acoustic at 2.5 kHz
FREQUENCY RESPONSE 30° OFF-AXIS ±2 dB from 75 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE 15 - 100 watts
MAXIMUM INPUT POWER 80 watts
OVERALL DIMENSIONS 7.6875" (19.5cm) Diameter " (0.0cm) Depth
CUT-OUT DIMENSIONS 6.75" (17.1cm) Diameter
MINIMUM INTERNAL VOLUME REQUIRED 0.42 cu ft (12 L)
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 3" (7.6cm)

Specifications are subject to change without notice.
